SHF Series
คำอธิบายคุณสมบัติ
SHF (Shaft Support Block) เป็นชิ้นส่วนที่ทำหน้าที่รองรับและยึดเพลาให้มั่นคง พร้อมทั้งสามารถรับน้ำหนักได้ดี

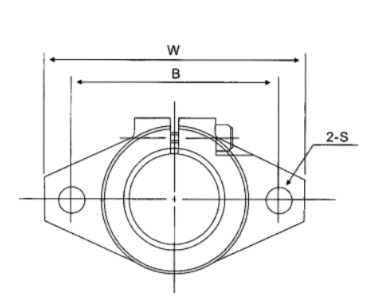

Specifications
Unit : mm
| Part Number | Shaft Diameter mm | Major Dimensions | Adjusting Bolt Size | Mass g |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | L | T | F | G | B | S (Bolt Size) | ||||
| mm | mm | mm | mm | mm | mm | mm | ||||
| SHF10 | 10 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5(M 5) | M4 | 13 |
| SHF12 | 12 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5(M 5) | M4 | 20 |
| SHF13 | 13 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5(M 5) | M4 | 20 |
| SHF16 | 16 | 50 | 16 | 8 | 31 | 28 | 40 | 5.5(M 5) | M4 | 27 |
| SHF20 | 20 | 60 | 20 | 8 | 37 | 34 | 48 | 7(M 6) | M5 | 40 |
| SHF25 | 25 | 70 | 25 | 10 | 42 | 40 | 56 | 7(M 6) | M5 | 60 |
| SHF30 | 30 | 80 | 30 | 12 | 50 | 46 | 64 | 9(M 8) | M6 | 110 |
| SHF35 | 35 | 92 | 35 | 14 | 58 | 50 | 72 | 12(M 10) | M8 | 380 |
| SHF40 | 40 | 102 | 40 | 16 | 67 | 56 | 80 | 12(M 10) | M10 | 510 |
| SHF50 | 50 | 122 | 50 | 19 | 83 | 70 | 96 | 14(M 12) | M12 | 890 |
| SHF60 | 60 | 140 | 60 | 23 | 95 | 82 | 112 | 14(M 12) | M12 | 1,500 |
SI Unit 1N ≅ 0.102kgf
