SCTS-C Series
คำอธิบายคุณสมบัติ
● โครงสร้างชิ้นเดียว
● ไม่มีการ Backlash
● ความแข็งแรงสูง
● เหมาะสำหรับ Encoder งานกำลังต่ำ และระบบส่งกำลังความแม่นยำสูง
● รูปแบบการยึด: Clamp type
Material
- Stainless Steel (สแตนเลส)
Surface Treatment

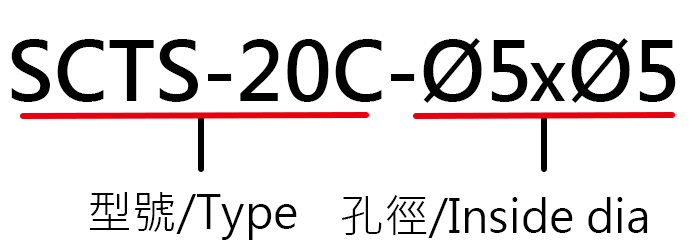

Specifications
| Catalog Number | D | L | I | G | H | M | d1 x d2 Standard Bore (H7) | Mass** (g) | 2D Download |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| SCTS-12C | 12 | 18.5 | 5.0 | 2.5 | 4.0 | M2 | 3 | 5 | 10.0 | SCTS-12C |
| SCTS-16C | 16 | 23.0 | 6.5 | 3.25 | 5.0 | M2.5 | 4 | 6 | 30.0 | SCTS-16C |
| SCTS-20C | 20 | 26.0 | 7.5 | 3.75 | 6.5 | M3 | 5 | 8 | 49.0 | SCTS-20C |
| SCTS-25C | 25 | 31.0 | 8.5 | 4.25 | 8.5 | M3 | 6 | 10 | 92.0 | SCTS-25C |
| SCTS-32C | 32 | 41.0 | 12.0 | 6.0 | 11.0 | M4 | 8 | 14 | 218.0 | SCTS-32C |
| SCTS-40C | 40 | 56.0 | 16.0 | 8.0 | 14.0 | M5 | 8 | 16 | 470.0 | SCTS-40C |
| SCTS-50C | 50 | 71.0 | 18.0 | 9.0 | 18.0 | M6 | 12 | 22 | 750.0 | SCTS-50C |
| SCTS-63C | 63 | 90.0 | 22.0 | 12.0 | 24.0 | M8 | 14 | 35 | 1400.0 | SCTS-63C |
Performance
Unit : mm
| Catalog Number | Stock Bores d1 x d2 (H7) |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 4 | 5 | 6 | 6.35 | 8 | 9.525 | 10 | 12 | 14 | 15 | 16 | 18 | |
| SCT-12C SCTS-12C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | |||||||||||
| SCT-16C SCTS-16C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ||||||||||
| SCT-20C SCTS-20C | ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | |||||||||
| SCT-25C SCTS-25C | ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ||||||||
| SCT-32C SCTS-32C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ||||||||||
| SCT-40C SCTS-40C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ||||||||
| SCT-50C SCTS-50C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ |
|||||||||
| SCT-63C SCTS-63C | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ | ⚫ ⚫ |
||||||||||
| Catalog Number | Reted Torque (N．m) | Max. Torque (N．m) | Max Rotational Frequency (Rpm/min) | Moment* of Inertia (kg．m²) | Errors of Eccentricity (mm) | Errors of Angularity (°) | Errors of Shaft End-Play (mm) |
|---|---|---|---|---|---|---|---|
| SCTS-12C | 0.3 | 0.6 | 12000 | 2.2x10-7 | 0.10 | 2 | ±0.2 |
| SCTS-16C | 0.5 | 1.0 | 9500 | 9.0x10-7 | 0.10 | 2 | ±0.3 |
| SCTS-20C | 1.0 | 2.0 | 7600 | 2.5X10-6 | 0.10 | 2 | ±0.3 |
| SCTS-25C | 2.0 | 4.0 | 6100 | 7.1x10-6 | 0.15 | 2 | ±0.4 |
| SCTS-32C | 3.5 | 7.0 | 4800 | 2.7x10-5 | 0.15 | 2 | ±0.5 |
| SCTS-40C | 8.0 | 16.0 | 3800 | 9.0x10-5 | 0.20 | 2 | ±0.5 |
| SCTS-50C | 15.0 | 30.0 | 3100 | 2.8x10-4 | 0.20 | 2 | ±0.5 |
| SCTS-63C | 35.0 | 70.0 | 2400 | 8.8x10-4 | 0.20 | 2 | ±0.5 |
